ak106 VARIO
ak106 VARIO – Instrument carrier table

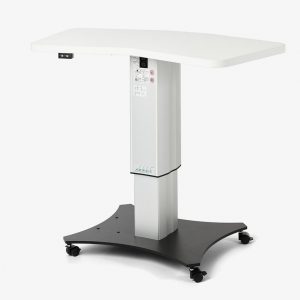

The ak106 VARIO tables are very versatile, high-quality instrument support tables. The tables are height-adjustable instrument tables. They are used to hold and supply mains power to ophthalmic devices and accessories for the treatment of seated patients.

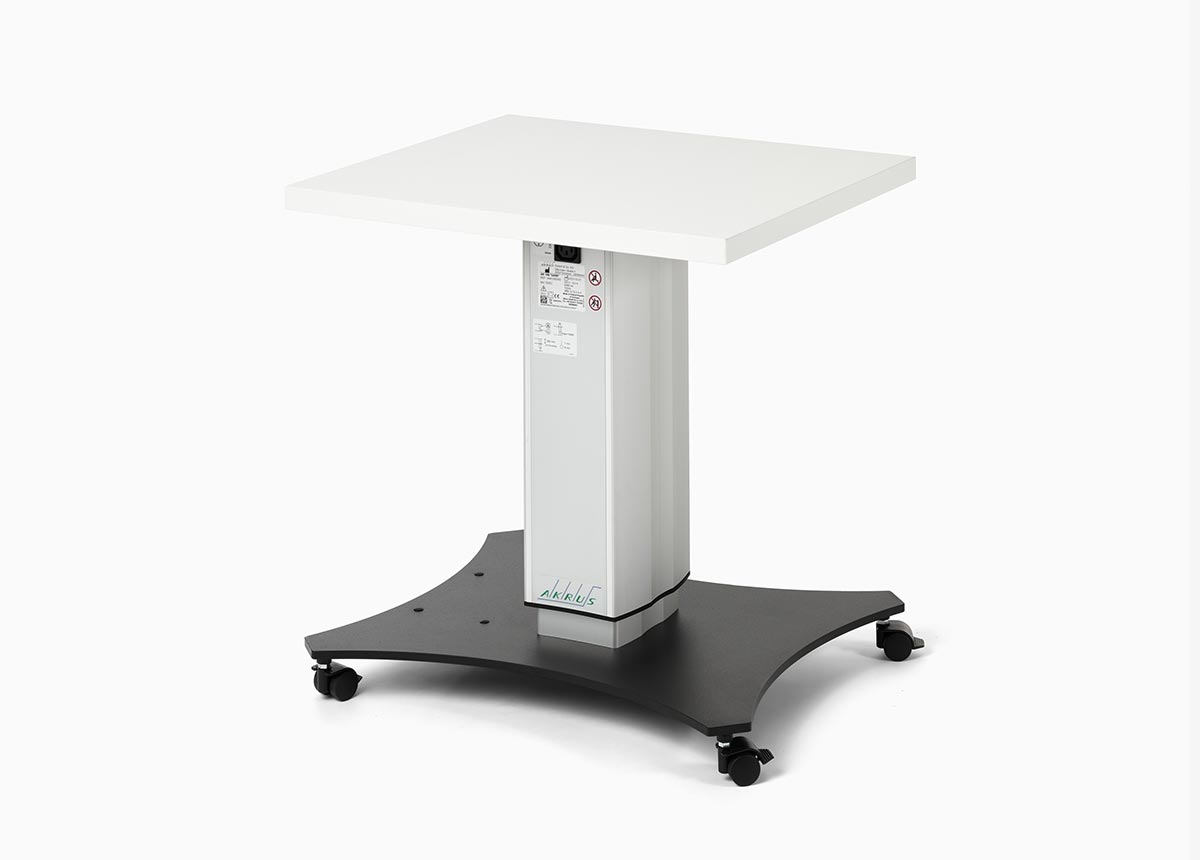

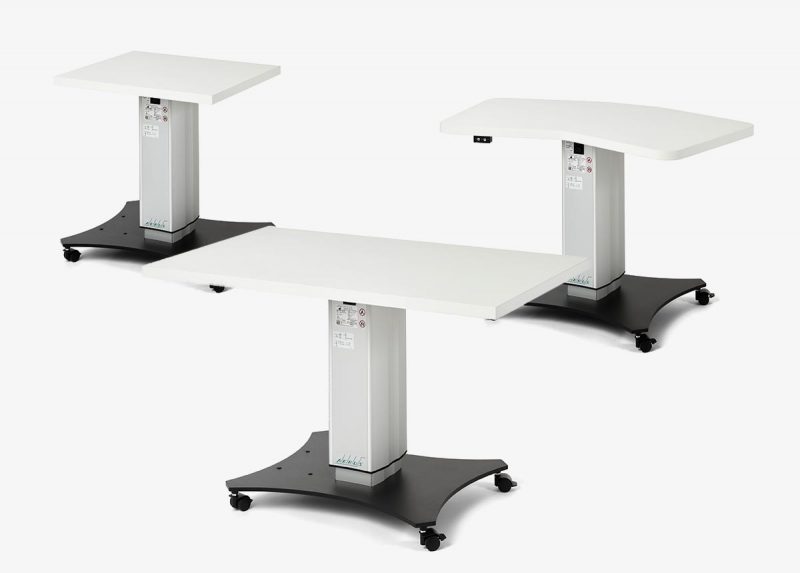

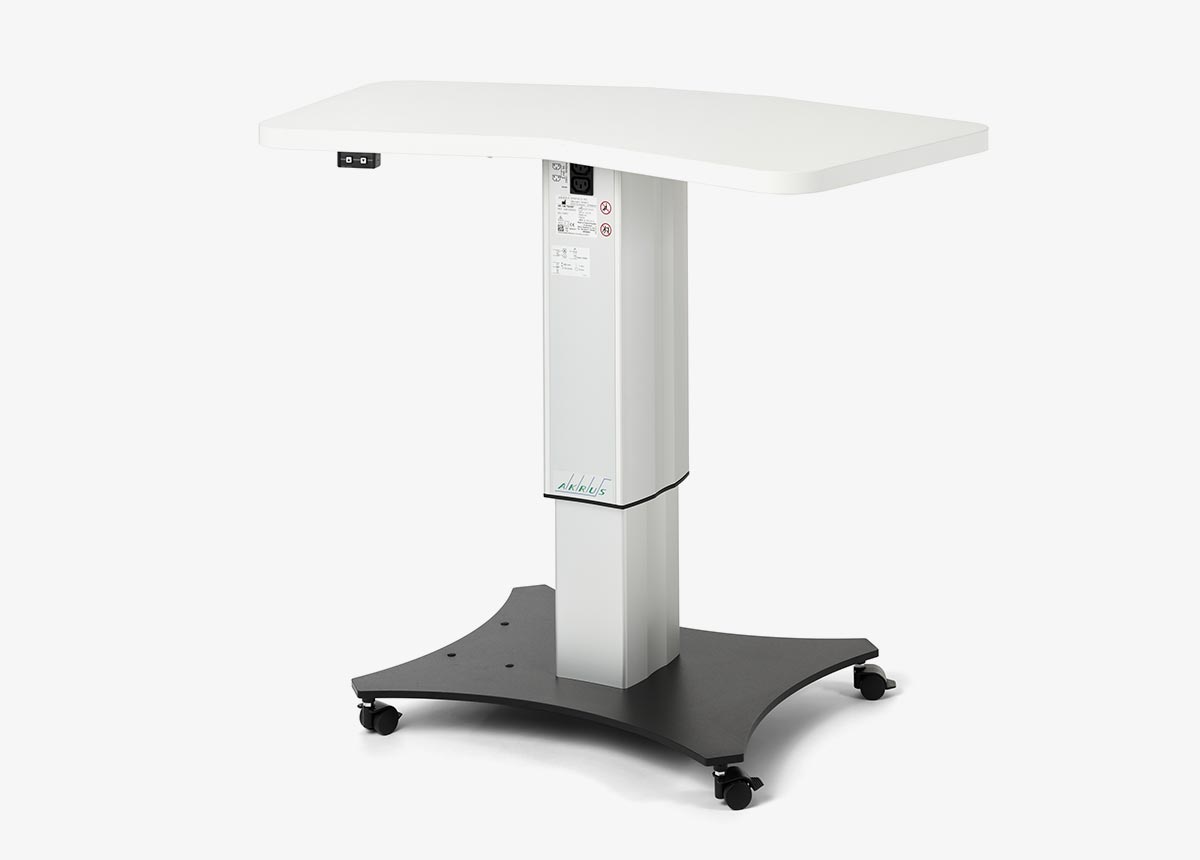

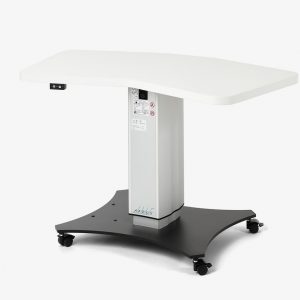

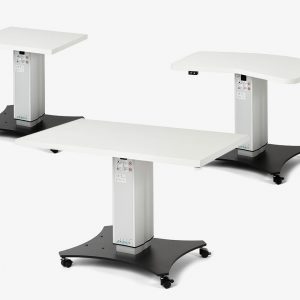

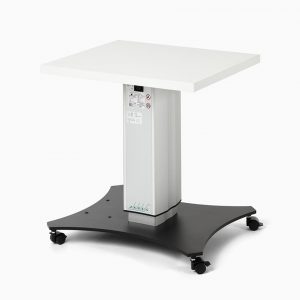

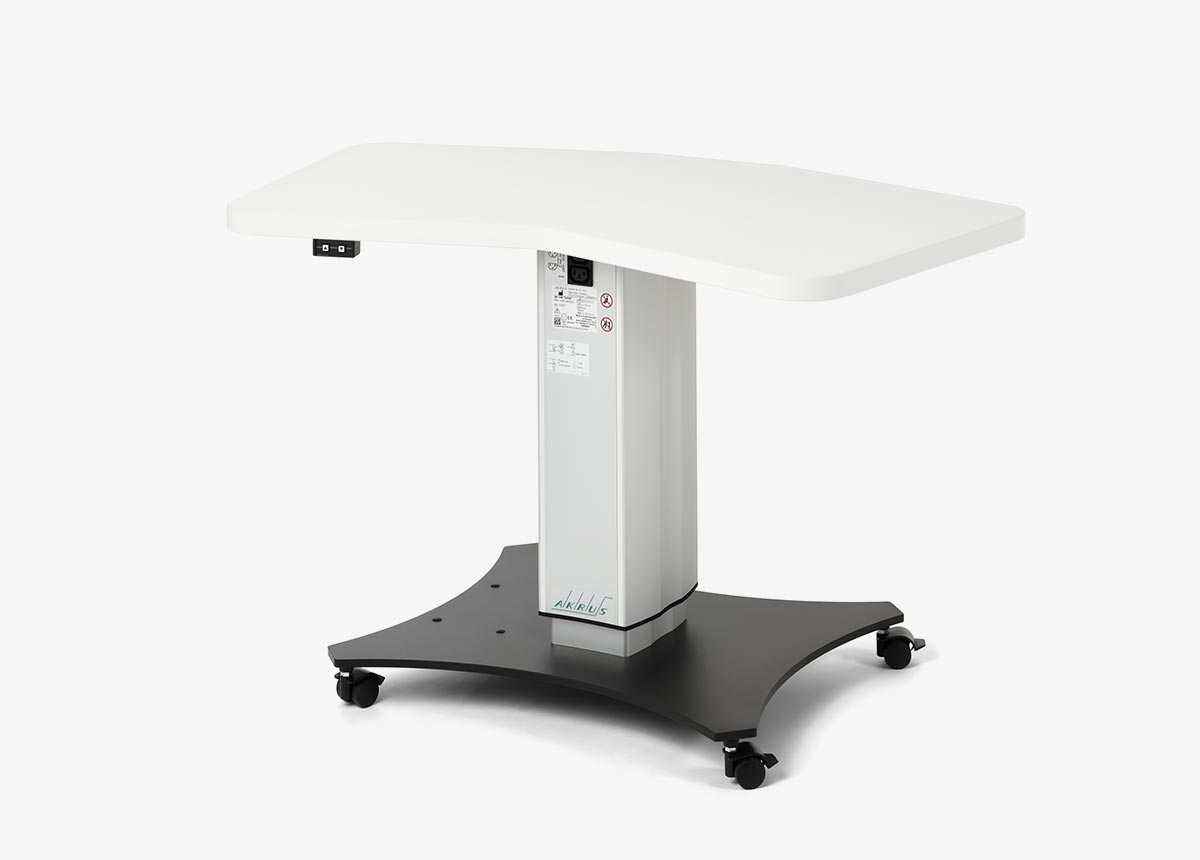

Rectangular or V-shaped table tops are available for the various application requirements.

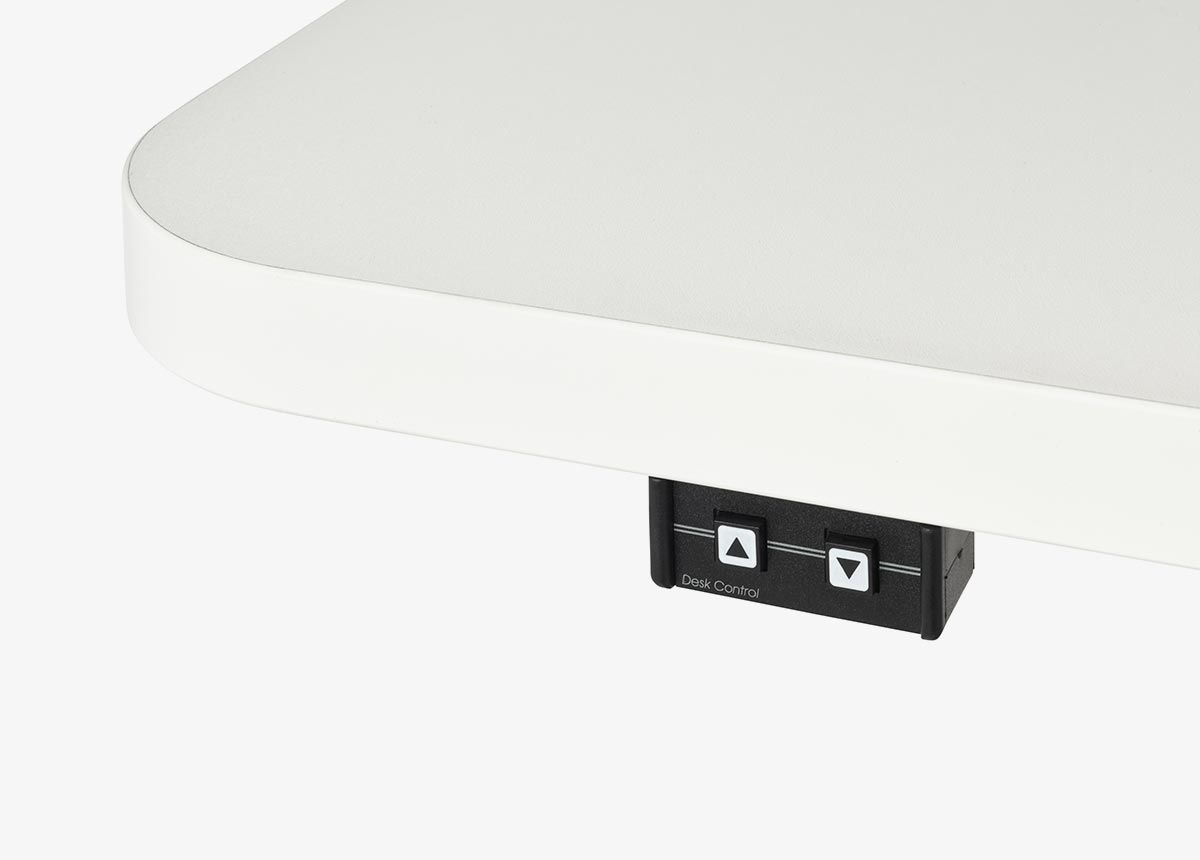

The table allows a maximum load of 70 kg. The combination of table base, electric motorized column and table top ensures stability and immobility of the column under load. With an initial height of 61.5 cm and a column adjustment range of up to +30 cm, the ak106 VARIO instrument table allows precise and comfortable adjustments to the patient.
Up to two ophthalmic electrical devices can be connected and supplied with power via the IEC sockets built into the electric motorized column.
The ak106 VARIO is supplied as a kit. Only a few simple steps are required for assembly. The use of high-quality components ensures many years of reliable use when used as intended. In the event of a service request, authorized medical technology dealers are available.
APPLICATION AREAS
TECHNICAL DATA
ak106 VARIO
Designation | Value |
---|---|
Cast base | 400 x 600 mm |
Lifting height | 300 mm |
Table height min | 590 mm |
Table height max | 890 mm |
Table weight | 39 kg |
Designation | Value |
---|---|
Electrical data | |
Nominal voltage | 230/110 Volt |
Nominal frequency | 50-60° |
Accessories ak106 VARIO
