ak446

ak446 – the pump stool

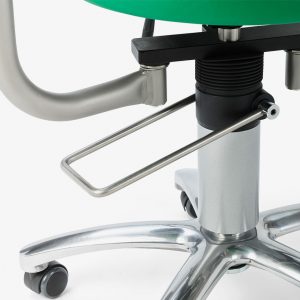

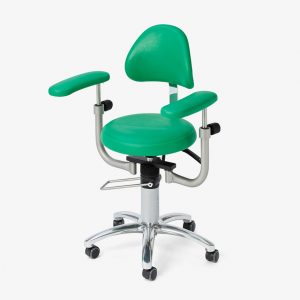

The ak446 hydraulic doctor’s stool is equipped with a round seat. The stable castor cross holds five high-quality castors and provides the necessary mobility. The height is adjusted using a hydraulic pump column, which is operated with the foot. The pump handle can be swiveled through 360 degrees. The stool can be ordered with or without a backrest and armrests, which can be easily and flexibly adjusted to the desired position. Horizontally movable armrest holders allow easy navigation of the armrests with the elbows. As an option, the ak446 doctor’s stool can be fitted with pre-shaped multi-directional multi-joint armrests. This allows even finer adjustment of the forearm/hand support during an operation. The AKRUS upholstery is manufactured to a high standard and is comfortable and easy to clean. Various colors are available to choose from and allow color matching to the hospital or practice environment. The ak446 hydraulic stool is delivered fully assembled and the use of high-quality components ensures many years of reliable use when used as intended. Authorized medical technology dealers are available in the event of a service request.

APPLICATION AREAS

Ophthalmology

ENT, OMF

General, plastic &
aesthetic surgery

TECHNICAL DATA
ak446

DesignationValue
Technical data
Base diameter600 mm
Roller diameter50 mm
Height adjustment530-720 mm
Seat surface430-340 mm
Seat cushion thickness80 mm
Armrest height adjustment140-290 mm
Max. person weight 135 kg
DesignationValue
Ambient conditions
Application
Air temperature +10° C - +40° C
Rel. humidity max. 50 % non-condensing
Air pressure 700 - 1060 hPa
Storage without original packaging
Air temperature -10 °C to +55 °C
Rel. humidity 10 % to 95 % non-condensing
Air pressure 700 - 1060 hPa
Storage and transportation in original packaging
Air temperature-40 °C to +70 °C
Rel. humidity 10 % to 95 % non-condensing
Air pressure 700 - 1060 hPa
Main Image
Choose one of 16 colors from our standard range. Special colors on request.
Combra white, Combra White / 207x605
Cream / 208x2380
Sand / 207x3261
Pearl, Pearl / 032x4354
Lilac, Lilac / 208x2392
Blue-grey, Bluegrey / 208x1277
Cornflower / 207x729
Midnightblue / 032x4709
Yellow, Yellow / 208x2795
Orange / 208x3107
Red, Red / 207x2796
Opera / 218x1637
Mint / 208x2394
Turquoise / 208x749
Anthracite, Charcoal / 207x1049
Black, Black / 217x3117
ak446 Product informationdownload
ak446 Declaration of ConformityDownload
ak446 Operating instructionsdownload
