sb5010 ES

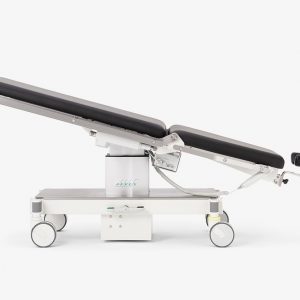

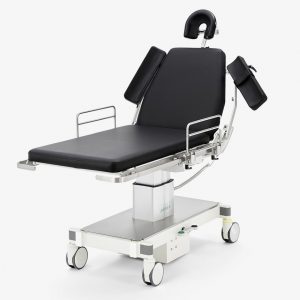

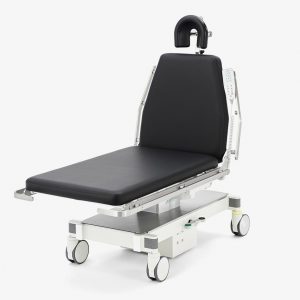

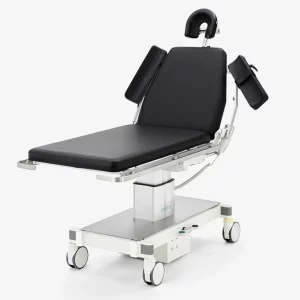

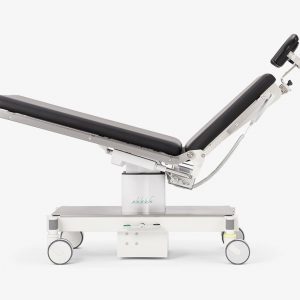

sb5010 ES – the mobile operating table with a view of the eye
The mobile, battery-powered operating table series sb5010 ES/HS was developed for versatile outpatient applications, e.g. in ophthalmology, ENT (ear, nose and throat), maxillofacial (mouth, jaw and face) as well as plastic, reconstructive and aesthetic surgery. Compared to the mobile operating chairs, this table has a 10 cm longer lying surface.
Outpatient treatment of the eye usually requires the surgeon to be in a sitting position. The height of the sb5010 ES (Eye Surgery) mobile operating table can be adjusted from 52 cm to 78 cm and the head, back and torso elements can be individually adjusted to provide the surgeon with an unrestricted and ergonomic operating field. Standard lifting columns (up to 200 kg patient weight) or heavy-duty lifting columns (up to 300 kg patient weight) are available. Quality castors and the AKRUS castor fixing system ensure mobility and a secure stand. …
APPLICATION AREAS

Ophthalmology

ENT, OMF

Plastic and
aesthetic surgery
TECHNICAL DATA
sb5010 ES
Designation | Value |
---|---|
Dimensions & weight | |
Chassis (WxHxD) | 578 x 236 x 1036 mm |
Chassis incl. foot switch (WxHxD) | 578 x 236 x 1121 mm |
Chassis width | 560 mm |
Width of chair with equipment rail | 700 mm |
Bed surface width | 590 mm |
Depth of lying surface | 990 mm |
Backrest length (without headrest) | 610 mm |
Length of lying surface (without headrest) | 1615 mm |
Length of lying surface incl. standard headrest (max. extension) | 1933 mm |
Headrest length extension | 0-100 mm |
Maximum patient weight with standard lifting column | 200 kg |
Maximum patient weight with heavy-duty lifting column | 300 kg |
Weight (depending on options) | approx. 118 kg |
Seat adjustment range (vertical, Z-axis) | |
Seat cushion min. (entry height) | 520 mm |
Seat cushion max. (seat height) | 780 mm |
Adjustment range (stroke) | 0-260 mm |
Backrest adjustment range | |
Horizontal to vertical | 0°- 85° |
Shock storage below horizontal | -15° |
Chassis | |
Castor functions | 4 swivel castors free |
1 swivel castor, directionally fixed | |
4 swivel castors locked | |
Castor diameter | 125 mm |
Designation | Value |
---|---|
Electrical data | |
Battery | |
Power supply | Battery, lead, rechargeable |
Capacity | 24 V DC, 1 x 2.9 Ah |
Mains connection (charging station) | 100-240 Volt |
Charging time approx. | 4 h |
Rated frequency | 50 - 60 Hz |
Rated current | 400 mA |
Protection class | IP 65 |
Continuous use per drive | Max. 6 minutes |
Electrically conductive upholstery | optional |
Ambient conditions | |
Application | |
Air temperature | +10° C - +40° C |
Rel. humidity | max. 50 % non-condensing |
Air pressure | 700 - 1060 hPa |
Storage without original packaging | |
Air temperature | -10 °C to +55 °C |
Rel. humidity | 10 % to 95 % non-condensing |
Storage and transportation in original packaging | |
Air temperature | -40 °C to +70 °C |
Rel. humidity | 10 % to 95 % non-condensing |

Choose one of 16 colors from our standard range. Special colors on request.
Accessories sb5010 ES
sb5010 ES
Armrest without adjustment options
Armrest without adjustment options, made of preformed integral foam, attachment to standard rail holder, PU 1
Item no. | 241.030260 |
sb5010 ES
Armrest with ball joint, complete PU-sh.
Flexibly adjustable armrest with ball joint, for horizontal use, made of preformed integral foam, attachment to standard rail, incl. clamping clamp, PU 1
Item no. | 241.030250 |
sb5010 ES
Replacement battery
Battery, rechargeable, 24 V DC, 1 x 2.9 Ah
Item no. | 100-925 |
sb5010 ES
Headrest - flat "Berlin"
Flat headrest cushion, width = 250mm, without headrest holder
Item no. |
241.030660
|
sb5010 ES
Infusion bottle holder for standard rail
Bracket with three hangers, height-adjustable, for mounting on the standard rail, incl. clamping clamp
Item no. | 240.030501 |
sb5010 ES
Instrument tray - swiveling
For all mobile operating chairs and operating tables, incl. mounting kit for lifting column housing, swivel, tilt and height-adjustable, supplied fully assembled on operating chair or table
Item no. | 275.020400 |
sb5010 ES
Multi-joint headrest (2-point headrest)
Headrest with flexibly adjustable 2-point holding system for the head, serves to expose the respective half of the face or ear, without headrest holder
Item no. |
241.030648
|
sb5010 ES
Tilting mechanism for additional headboard inclination (toothing)
Headrest holder with tilting mechanism for extended headrest tilt, secure adjustment thanks to toothed joint, for mobile operating chair and operating table series sb/sc5010 ES/HS
Item no. |
275.030650
|
sb5010 ES
Headrest (trough), complete
U-shaped headrest, with recess to accommodate the back of the head, tiltable, removable integral foam padding, without headrest holder
Item no. |
241.030690
|
sb5010 ES
Angle extension "Morbus-Bechterew"
Allows the angle of the headrest to be changed for ankylosing spondylitis patients, use with existing headrest holder
Item no. |
240.030670
|
sb5010 ES
Headrest - flat
Flat headrest cushion, width 450mm, visco elastic padding, without headrest holder, suitable for all headrest holders
Item no. |
275.030700
|
sb5010 ES
Anesthesia arch - movable - with oxygen feed-through
Anesthetic elbow with oxygen feed-through, flexibly adjustable, universal hose coupling, incl. clamping clamp, flexible arm: L 762 mm x Ø17 mm
Item no. |
320-200
|
sb5010 ES
Anesthesia arch without air end with mounting kit
Rigid, stainless steel, without air outlet, incl. clamping clamp
Item no. |
240.030500
|
sb5010 ES
Arthroscopy support "abdomen/back"
Universally applicable back support for interventions/examinations performed in the lateral position
Item no. |
276.032400
|
sb5010 ES
Armrest doctor
Wrist support for the surgeon, height-adjustable, relieves strain on the surgeon's forearms and wrists during the procedure
Item no. |
240.030400
|
sb5010 ES
Addition - Push handle
Push handle for mounting on the standard rail of the backrest segment. Suitable for sb/sc5010 ES/HS/SEK, tool-free assembly, delivery incl. clamping clamp, PU 1
Item no. |
275.030200
|
sb5010 ES
Security grille
Folding safety grid for fixing to the standard rail
Item no. |
240.020200
|
sb5010 ES
5 Function foot joystick panel (M1+M2 retrievable)
Foot control panel mounted on the chassis with 5 functions. Adjustment of table height and tilt, backrest, headrest and 2x memory storage can be called up. For operating chair series sb5010 ES/HS.
Item no. | 649.012020 |
sb5010 ES
Foot switch, complete
Foot control for adjusting the seat height and backrest angle. Including holder, removable switch for placement on the floor, suitable for operating chair and table versions with welded chassis.
Item no. | 275.012020 |
