sc5010 SEK

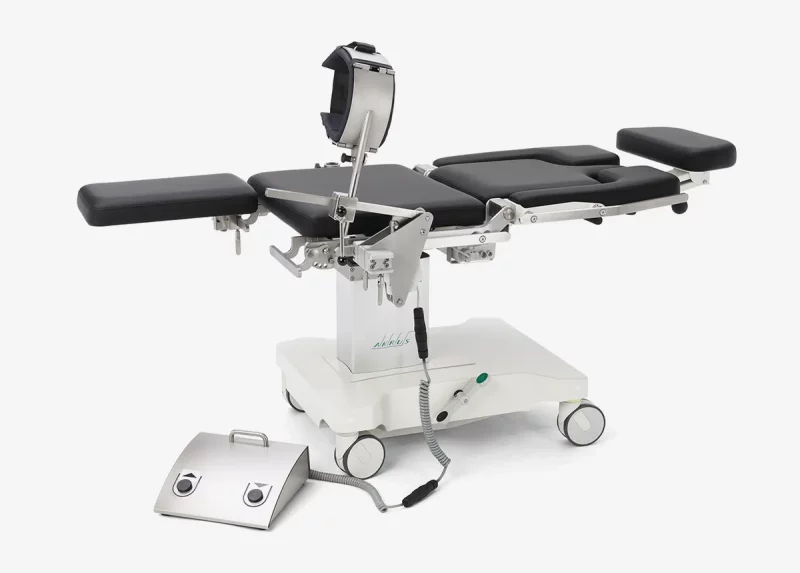

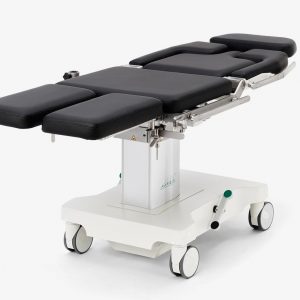

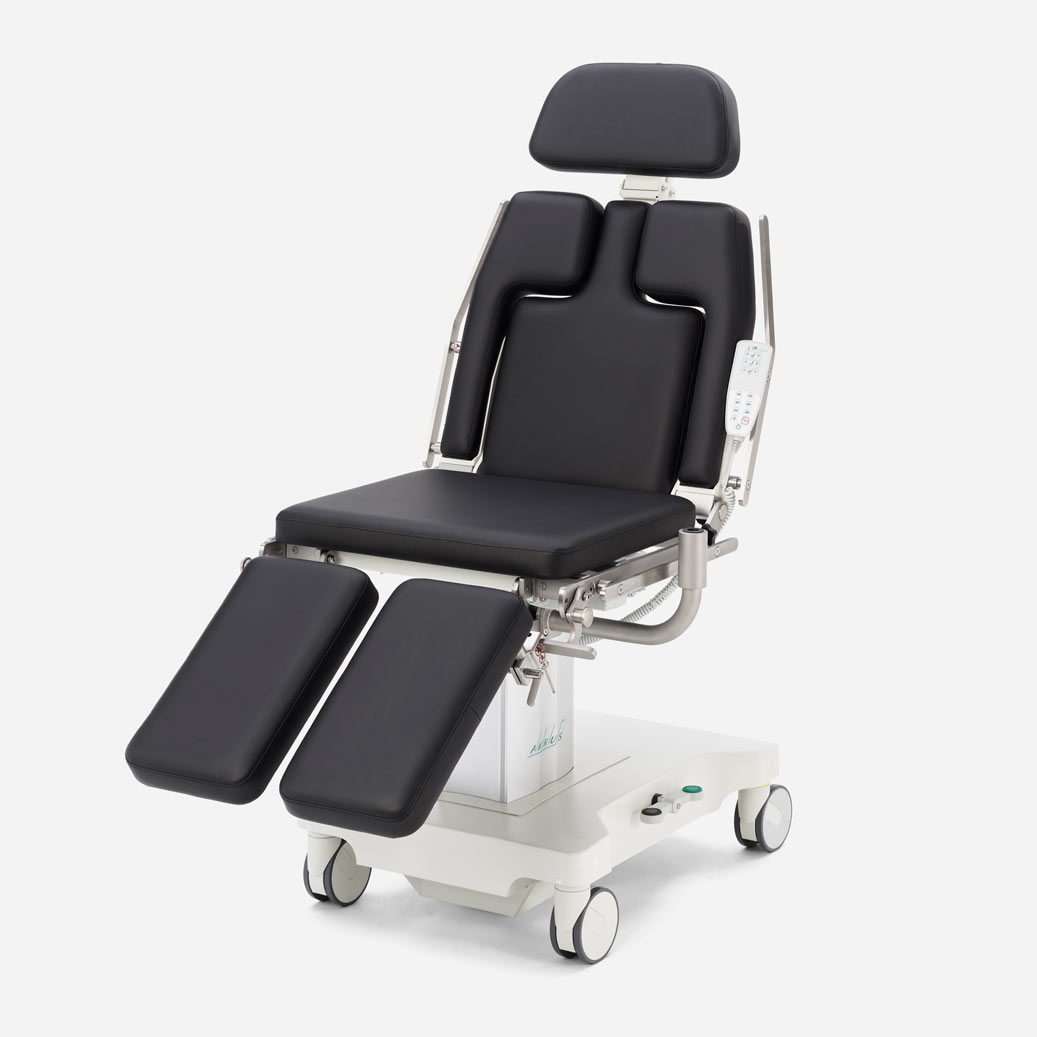

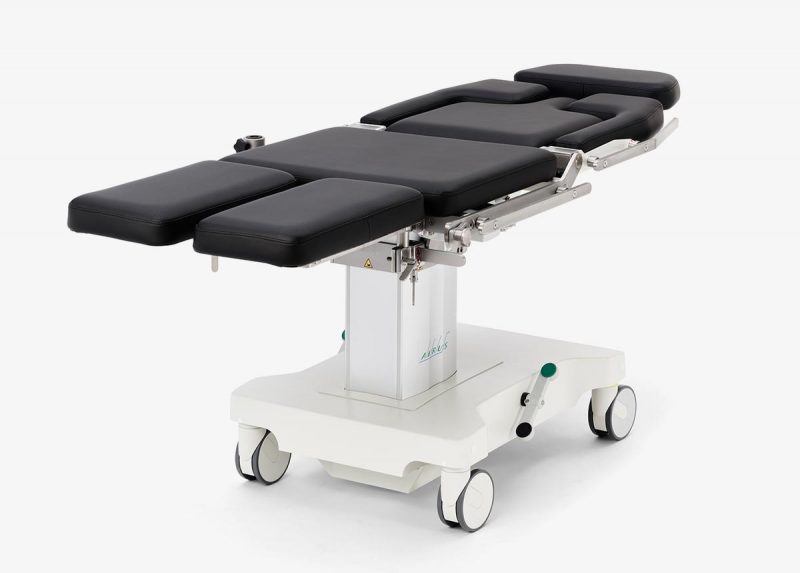

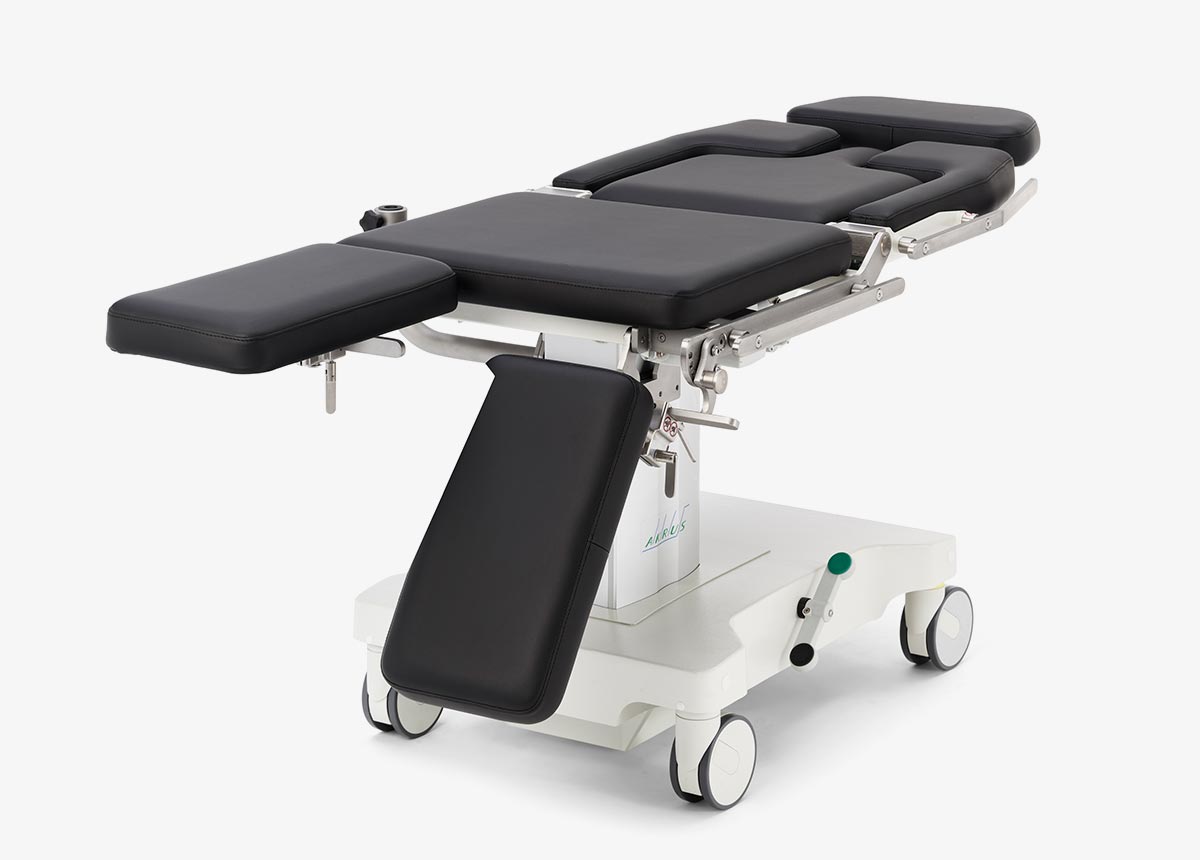

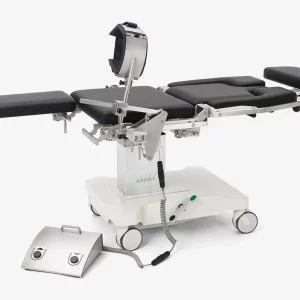

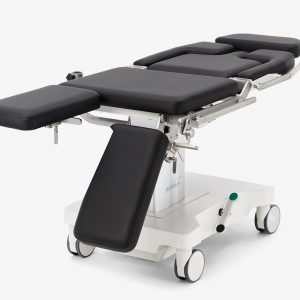

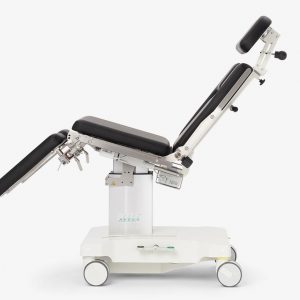

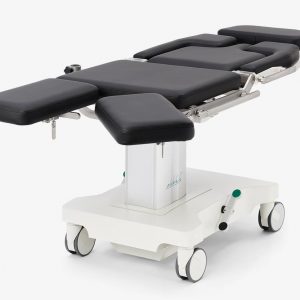

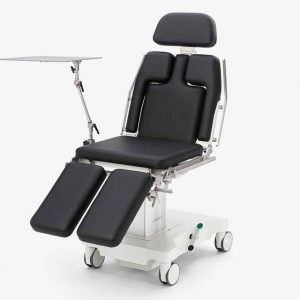

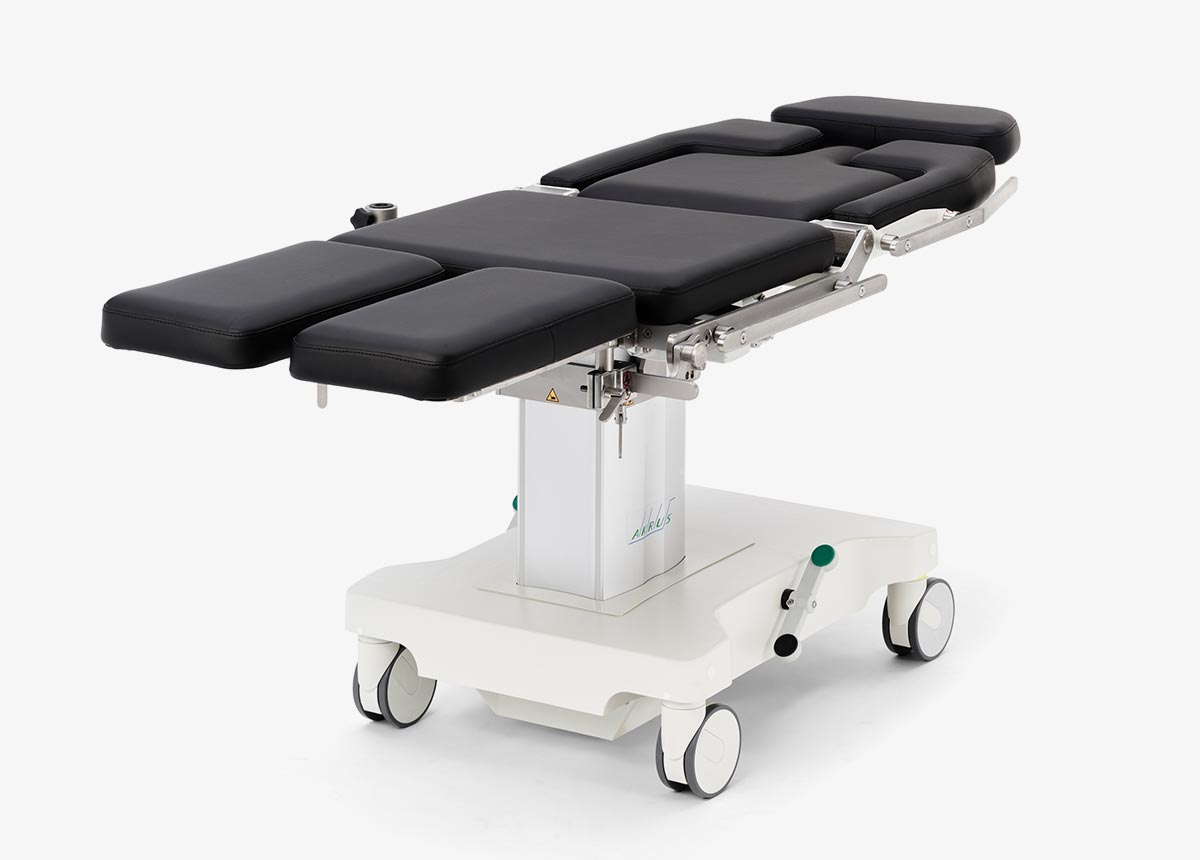

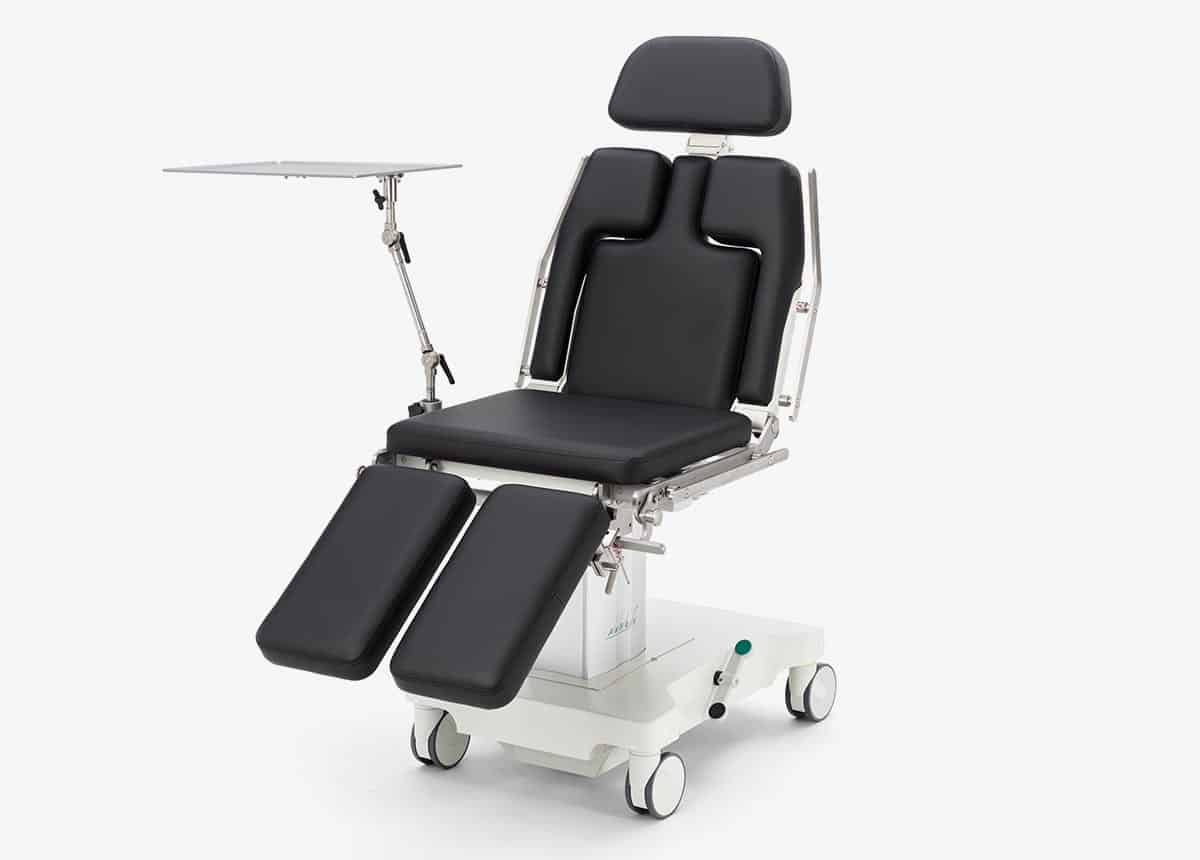

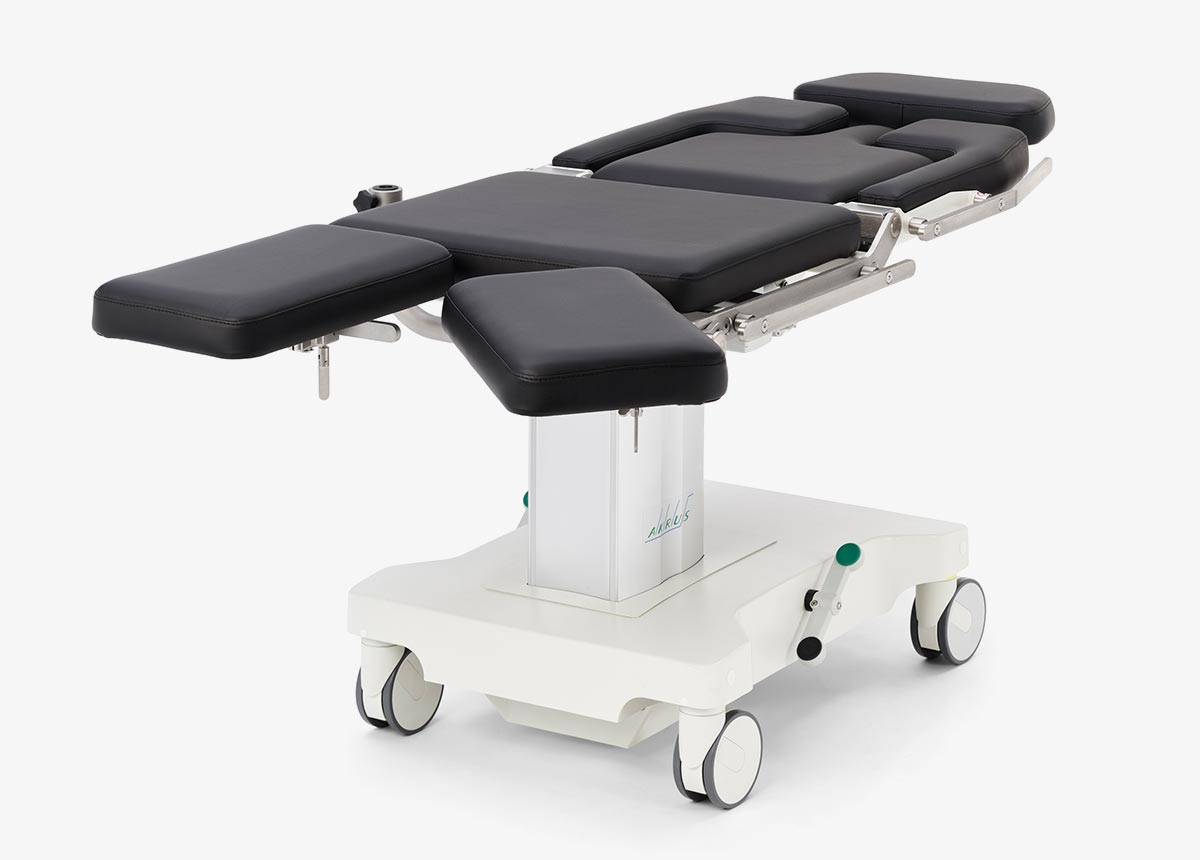

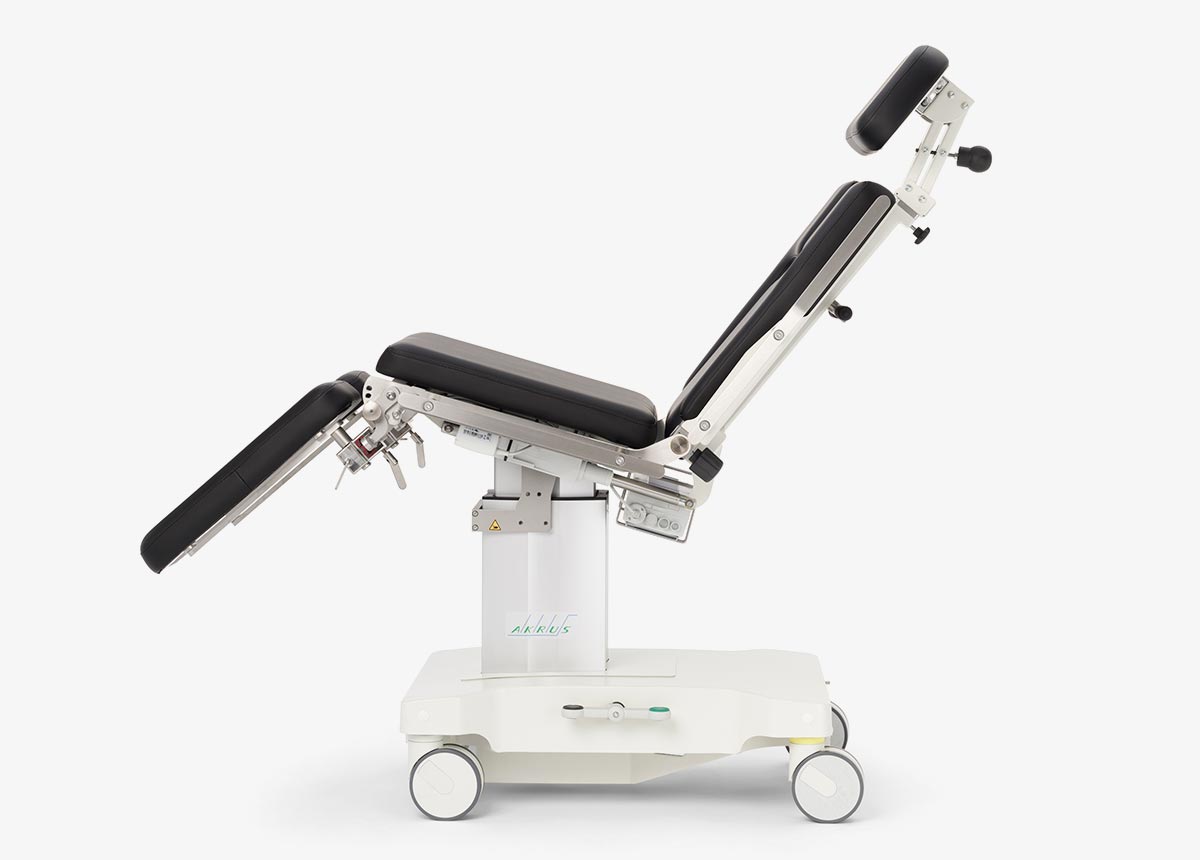

sc5010 SEK – the mobile operating chair for large joints
The mobile operating chair sc5010 SEK (shoulder, elbow, knee) allows outpatient surgery to be performed on large joints. This includes operations in the fields of orthopaedics and arthroscopy. The flexible design of the sc5010 SEK operating chair also allows it to be used in the fields of dermatology and aesthetic plastic surgery. Adapted to the presentation of large joints, the height adjustment of the seat from 63 cm to 98 cm, as well as the individual adjustment options for the head, back, torso and leg supports, support the precise adjustment of the operating field. Standard lifting columns (up to 200 kg patient weight) or heavy-duty lifting columns (up to 300 kg patient weight) are available. Backrest segments can be easily removed if required, providing unrestricted access to the shoulder joint. The flexibly adjustable leg supports can be adjusted horizontally and vertically or removed completely. Various headrest systems are available for the required head positioning or fixation. …
APPLICATION AREAS

Shoulder
Arthroscopy

Knee
Arthroscopy

Hand / Arm

Foot / Leg
TECHNICAL DATA
sc5010 SEK
Designation | Value |
---|---|
Dimensions and weight | |
Chassis (WxHxD) | 602 x 225 x 884 mm |
Trolley incl. leg segment (vertical) and foot switch (WxHxD) | 602 x 225 x 1049 mm |
Chassis width | 580 mm |
Width of chair with equipment rail | 700 mm |
Seat width | 590 mm |
Overall height with vertical backrest | 1440 mm |
Lying surface with horizontal backrest | 2000 mm |
Maximum patient weight with standard lifting column | 200 kg |
Maximum patient weight with heavy-duty lifting column | 300 kg |
Weight (depending on options) | approx. 95 kg |
Seat adjustment ranges (vertical, Z-axis) | |
Seat surface min. (access height) | 670 mm |
Seat surface max. (seat height) | 970 mm |
Adjustment range (stroke) | 300 mm |
Backrest adjustment ranges | |
Horizontal to vertical | 5°- 95° |
Shock storage below horizontal | -15 ° |
Headrest adjustment ranges | |
Vertical | 160 mm |
Lateral (only applies to laterally adjustable headrest) | 120 mm |
Shoulder cut-out | Segments removable right, left |
Chassis | |
Castor functions | 4 swivel castors free |
1 swivel castor, directionally fixed | |
4 swivel castors locked | |
Castor diameter | 125 mm |
Designation | Value |
---|---|
Electrical data | |
Battery | |
Power supply | Battery, lead, rechargeable |
Capacity | 24 V DC, 1 x 2.9 Ah |
Mains connection (charging station) | 100-240 Volt |
Charging time approx. | 4 h |
Rated frequency | 50 - 60 Hz |
Rated current | 400 mA |
fuse | T 1.25 //250 A/H//V |
Continuous use per drive | Max. 6 minutes |
Electrically conductive upholstery | optional |
Ambient conditions | |
Application | |
Air temperature | +10° C - +40° C |
Rel. humidity | max. 50 % non-condensing |
Air pressure | 700 - 1060 hPa |
Storage without original packaging | |
Air temperature | -10 °C to +55 °C |
Rel. humidity | 10 % to 95 % non-condensing |
Storage and transportation in original packaging | |
Air temperature | -40 °C to +70 °C |
Rel. humidity | 10 % to 95 % non-condensing |

Choose one of 16 colors from our standard range. Special colors on request.
Accessories sc5010 SEK
sc5010 SEK
Arm positioning table, complete
Arm support table for fixing to standard rail, suitable for right-left, dimensions 650mm x 350mm, viscoelastic padding, color: black, radiolucent. One-leg support, foldable and height-adjustable. Clamping clamp included
Item no. | 276.032800 |
sc5010 SEK
Armrest without adjustment options - left
Armrest left, without adjustment options, made of preformed integral foam, for sc5010 SEK, attachment to standard rail holder, PU 1
Item no. | 275.030260 |
sc5010 SEK
Armrest without adjustment options - right
Armrest right, without adjustment options, made of preformed integral foam, for sc5010 SEK, attachment to standard rail holder, PU 1
Item no. | 275.030270 |
sc5010 SEK
Upholstery parts, viscoelastic
Upholstery parts set, viscoelastic, for sc5010 SEK
Item no. | 288.901000 |
sc5010 SEK
Armrest with ball joint, complete PU-sh.
Flexibly adjustable armrest with ball joint, for horizontal use, made of preformed integral foam, attachment to standard rail, incl. clamping clamp, PU 1
Item no. | 241.030250 |
sc5010 SEK
Multi-joint armrest (seated application)
Flexibly adjustable armrest with ball joint, made of preformed integral foam, fixation to standard rail, incl. clamping clamp for seated use, PU 1
Item no. | 275.030250 |
sc5010 SEK
Knee support, mechanical
Mechanical leg holder for exposing the knee joint during arthroscopic procedures, individually adjustable, fixation to standard splint, suitable for right and left side, incl. clamping clamp
Item no. | 276.032500 |
sc5010 SEK
Knee support, electric
Electronically adjustable leg holder for exposing the knee joint during arthroscopic procedures, individually adjustable, fixation on standard splint, suitable for right and left side, incl. clamping clamp, battery-operated foot control and charger
Item no. | 276.032500 |
sc5010 SEK
Replacement battery
Battery, rechargeable, 24 V DC, 1 x 2.9 Ah
Item no. | 100-925 |
sc5010 SEK
Leg holder
Leg support (gynaecological support), dimensions 290mm x 185mm, individual adjustment with ball joint, height-adjustable, without fixation strap, for attachment to standard rail, incl. stainless steel clamp, PU 1
Item no. | 276.050100 |
sc5010 SEK
Göpel leg/calf support, complete (1 pair)
Leg support (gynaecological support), dimensions 290mm x 185mm, individual adjustment with ball joint, height-adjustable, without fixation strap, for attachment to standard rail, incl. stainless steel clamp, for horizontal use, PU2
Item no. | 276.050000 |
sc5010 SEK
4 Function foot joystick panel (M1+M2 can be called up)
Foot panel mounted on the chassis with 4 functions. Adjustment of seat height and tilt, backrest, headrest and 2x memory. For operating chair series sc5010 SEK
Item no. | 288.012500 |
sc5010 SEK
4-foot switch 2 axes
For adjusting the seat height and inclination of the backrest. Includes holder, can be removed and placed on the floor, suitable for OR chair versions with cast chassis of the SC5010 ES/HS/SEK series
Item no. |
275.012400
|
sc5010 SEK
Infusion bottle holder for standard rail
Bracket with three hangers, height-adjustable, for mounting on the standard rail, incl. clamping clamp
Item no. | 240.030501 |
sc5010 SEK
Instrument tray - swiveling
For all mobile operating chairs and operating tables, incl. mounting kit for lifting column housing, swivel, tilt and height-adjustable, supplied fully assembled on operating chair or table
Item no. | 275.020400 |
sc5010 SEK
TCHR - Headrest (double padded head restraint)
'Double padded headrest for shoulder arthroscopic procedures, double U-shape made of integral foam for head fixation with exposed shoulder joint, removable pad, incl. inclinable headrest holder with quick-release coupling, for chair series sc5010 SEK
Item no. | 276.030850 |
sc5010 SEK
Headrest (trough), complete
U-shaped headrest with trough, tiltable, integral foam padding removable, incl. tiltable headrest holder (tilt joint) and quick-release coupling, for operating chair series sc5010 SEK
Item no. |
276.030690
|
sc5010 SEK
Angle extension "Morbus-Bechterew"
Allows the angle of the headrest to be changed for ankylosing spondylitis patients, use with existing headrest holder
Item no. |
240.030670
|
sc5010 SEK
Multi-joint headrest (2-point headrest)
Headrest with flexibly adjustable 2-point holding system for the head, serves to expose the respective half of the face or ear, incl. headrest holder with quick-release coupling, tiltable (tilt joint) for sc5010 SEK
Item no. |
276.030648
|
sc5010 SEK
Headrest - flat B
Flat headrest cushion, width 450mm, visco elastic padding, without headrest holder, suitable for all headrest holders
Item no. |
275.030700
|
sc5010 SEK
Headrest complete (laterally adjustable)
Flat headrest, width 450 mm, horizontally and laterally adjustable, visco elastic padding, incl. quick-release coupling, for chair series sc5010 SEK
Item no. |
276.030700
|
sc5010 SEK
Headrest - flat B (set)
Flat headrest cushion, width 450 mm, visco elastic padding, incl. tiltable headrest holder (tilt joint) with quick-release coupling, for chair series sc5010 SEK
Item no. |
276.030880
|
sc5010 SEK
Anesthesia arch - movable - with oxygen feed-through
Anesthetic elbow with oxygen feed-through, flexibly adjustable, universal hose coupling, incl. clamping clamp, flexible arm: L 762 mm x Ø17 mm
Item no. |
320-200
|
sc5010 SEK
Anesthesia arch without air end with mounting kit
Rigid, stainless steel, without air outlet, incl. clamping clamp
Item no. |
240.030500
|
sc5010 SEK
Arthroscopy support "abdomen/back"
Universally applicable back support for interventions/examinations performed in the lateral position
Item no. |
276.032400
|
sc5010 SEK
Back extension with padding complete
Extends the backrest of the sc5010 SEK mobile operating chair by 75 mm, fitted using the AKRUS SEK quick-release system, is attached between the backrest and headrest holder, can be moved sideways to expose the shoulder when the back segment is removed
Item no. |
276.030660
|
sc5010 SEK
Addition - Push handle
Push handle for mounting on the standard rail of the backrest segment. Suitable for sb/sc5010 ES/HS/SEK, tool-free assembly, delivery incl. clamping clamp, PU 1
Item no. |
275.030200
|
sc5010 SEK
Security grille
Folding safety grid for fixing to the standard rail
Item no. |
240.020200
|
