sc5010 HS

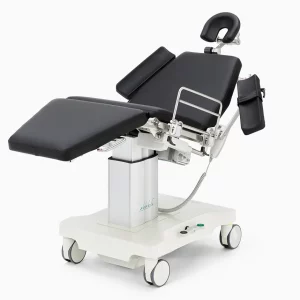

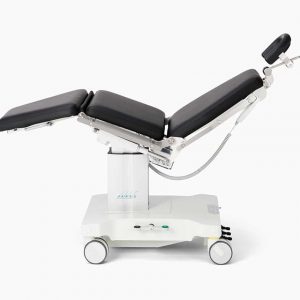

sc5010 HS – the mobile operating chair for the head

The mobile, battery-powered operating chair series sc5010 ES/HS was developed for versatile medical outpatient applications.

The sc5010 HS (Head Surgery) chair variant is intended for treatments on the head. This chair is used in the following medical specialties: ENT (ear, nose and throat), maxillofacial (mouth, jaw and face). Plastic, reconstructive and aesthetic surgery, primarily in the head area, as well as nerve stimulation and blood donation.

Users particularly appreciate the flexible, unrestricted access to the operating field, the legroom and the ergonomic advantages of the operating chair for doctors and patients.

APPLICATION AREAS

ENT, OMF

Plastic and
aesthetic surgery


TECHNICAL DATA
sc5010 HS

DesignationValue
Dimensions & weight
Chassis (WxHxD)602 x 225 x 884 mm
Trolley incl. leg segment (vertical) and foot switch (WxHxD) 602 x 225 x 1049 mm
Chassis width600 mm
Width of chair with equipment rail700 mm
Seat width590 mm
Seat depth440 mm
Backrest length (without headrest)610 mm
Length of lying surface without headrest1560 mm
Length of lying surface incl. standard headrest (max. extension) 1930 mm

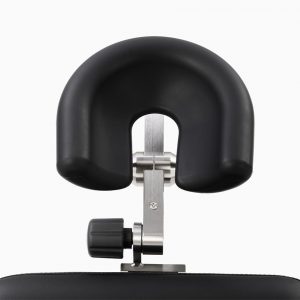

Headrest length extension0-100 mm
Maximum patient weight with standard lifting column200 kg
Maximum patient weight with heavy-duty lifting column300 kg
Weight (depending on options)approx. 118 kg
sc5010 HS (head surgery)
Seat cushion min. (entry height) 550 mm
Seat cushion max. (seat height) 810 mm
Adjustment range (stroke)0-260 mm

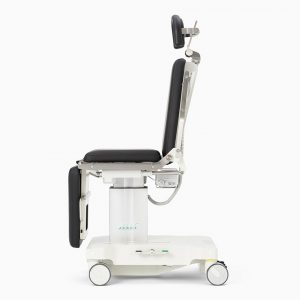

Backrest adjustment range
Horizontal to vertical0°- 85°
Shock storage below horizontal-15°

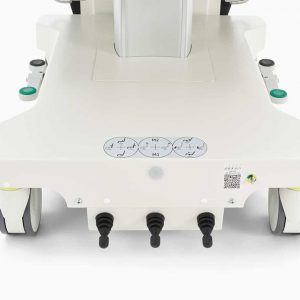

Chassis
Castor functions 4 swivel castors free
1 swivel castor, directionally fixed
4 swivel castors locked
Castor diameter125 mm
DesignationValue
Electrical data
Battery
Power supplyBattery, lead, rechargeable
Capacity24 V DC, 1 x 2.9 Ah
Mains connection (charging station)100-240 Volt
Charging time approx. 4 h
Rated frequency50 - 60 Hz
Rated current400 mA
Protection classIP 65
Continuous use per drive Max. 6 minutes
Electrically conductive upholstery optional
Ambient conditions
Application
Air temperature +10° C - +40° C
Rel. humidity max. 50 % non-condensing
Air pressure 700 - 1060 hPa
Storage without original packaging
Air temperature -10 °C to +55 °C
Rel. humidity 10 % to 95 % non-condensing
Storage and transportation in original packaging
Air temperature-40 °C to +70 °C
Rel. humidity 10 % to 95 % non-condensing

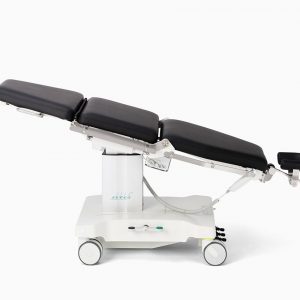

Main Image
Choose one of 16 colors from our standard range. Special colors on request.
Combra white, Combra White / 207x605
Cream / 208x2380
Sand / 207x3261
Pearl, Pearl / 032x4354
Lilac, Lilac / 208x2392
Blue-grey, Bluegrey / 208x1277
Cornflower / 207x729
Midnightblue / 032x4709
Yellow, Yellow / 208x2795
Orange / 208x3107
Red, Red / 207x2796
Opera / 218x1637
Mint / 208x2394
Turquoise / 208x749
Anthracite, Charcoal / 207x1049
Black, Black / 217x3117
sc5010 HS Product informationdownload
sc5010 HS Declaration of ConformityDownload
sc5010 HS Operating instructionsdownload


Accessories sc5010 HS
